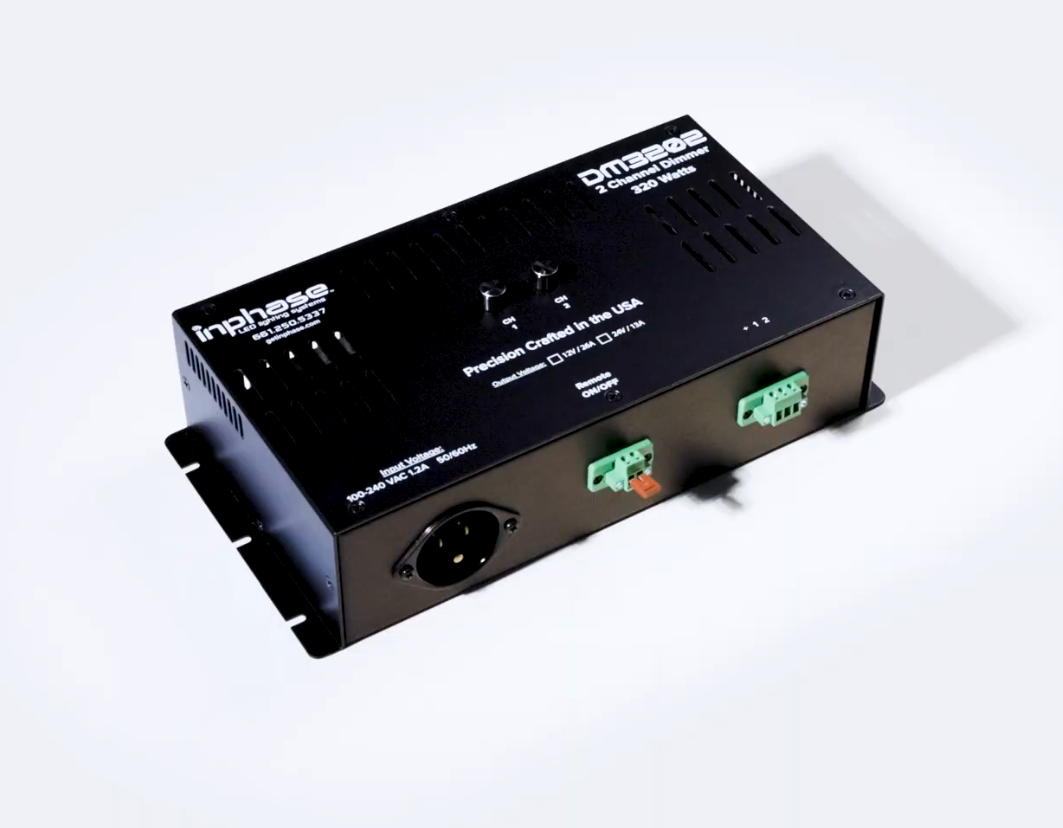

The DM-3202 dimmer unit is built in a powder-coated aluminum chassis featuring a Mean Well HLG320 power supply in 24V to drive a two-channel dimmer, allowing you to control up to 12A/320W. The DM-3202 has a standard 5-15 Edison input receptacle for power input, which can be connected using an extension cord. For the dimmer output, a three-pin Phoenix type 15A per pin connector is used. A two-pin Phoenix type connector is supplied for a remote ON/OFF option. To use this feature, remove the jumper and install our remote ON/OFF switch.
Specifications:
- 320-watt output, 24V DC
- Universal input: 100-277 V AC
- IP20 rating
- 30 Amp per channel dimmer rating
- 15 Amp Phoenix chassis mount output connector
- Two-pin remote On/Off Phoenix connector
- 5-15 Edison input receptacle
- Power coated 16ga steel chassis
- Size: 12” x 7” x 3”
- Weight: 8 lbs.
