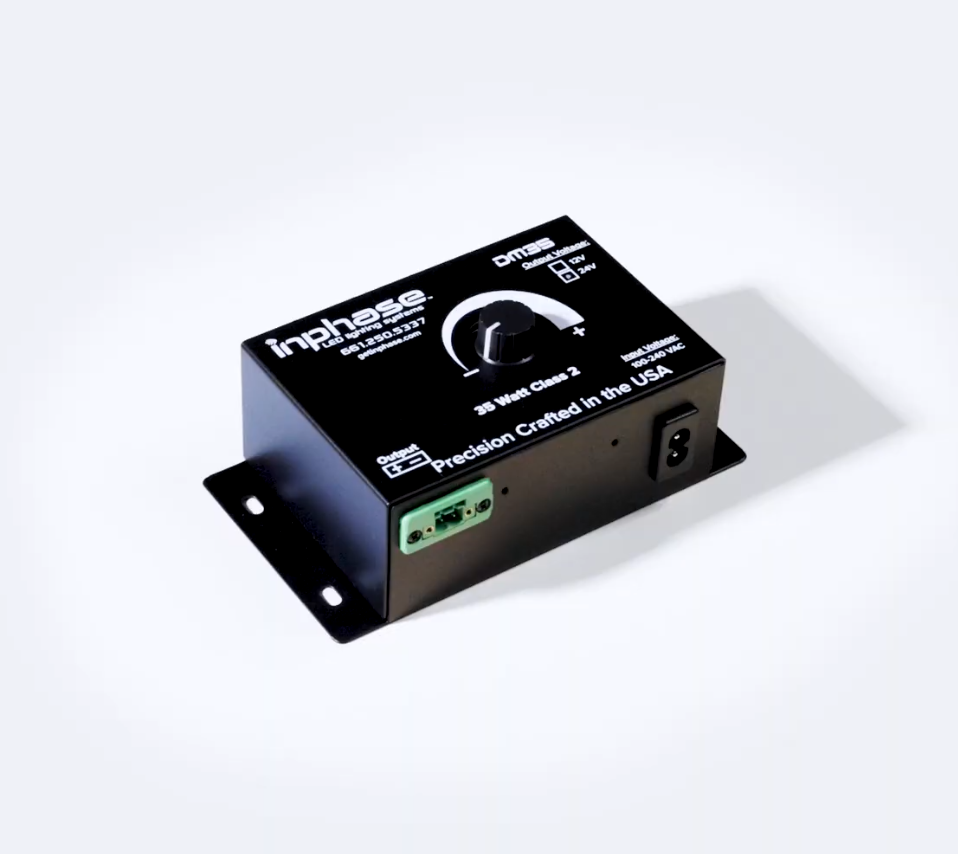

The DM-35 is a compact, stand-alone single-channel dimmer designed for straightforward control of LED lighting systems. It features a Class 2, 35-watt power supply available in 24V (1.5A), with a universal 100–240V AC input. The unit connects via a two-pin AC input with an integrated four-foot power cord and delivers output through a secure two-pin Phoenix connector with a screw lock for added reliability. Housed in a powder-coated chassis, the DM-35 is an ideal solution for small-scale installations requiring dependable single-channel dimming performance.
Specifications:
- Class 2 35-watt power supply, 24V (1.5A)
- Universal input: 100-240V AC (.75A)
- 25A Single channel dimmer
- Two-pin Phoenix output connector with screw lock
- Two-pin AC input with four-foot power cable
- Power coated 16ga chassis
- Size: 6.75” x 3.62 x 2.75”
- Weight: 1.12 lbs
