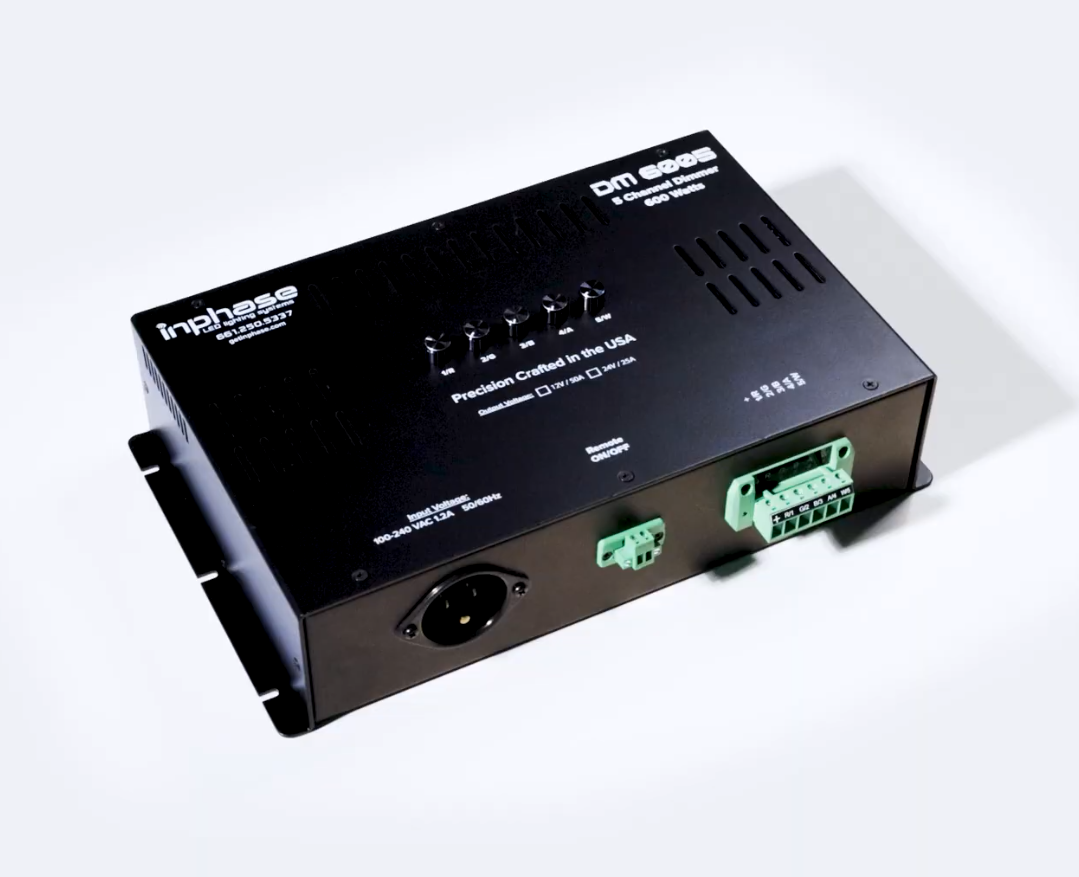

The DM-6005 is a high-capacity five-channel dimmer designed specifically for use with RGBAW five-color LED tape, but is compatible with any five-channel application. It’s built into a durable, powder-coated aluminum chassis with integrated cooling vents and four mounting holes for secure installation. Powered by a 600-watt Mean Well HLG600 power supply, the unit connects to standard 120V via a 5-15 Edison input receptacle (14-gauge extension cord recommended). Output is delivered through a six-pin Phoenix connector rated at 32 amps per pin. For remote control capability, a two-pin Phoenix connector is provided—simply remove the jumper and install an optional remote ON/OFF switch.
Specifications:
- 16 gauge aluminum chassis
- 600-watt output available in 24V DC
- IP65 rating, fully enclosed
- 10A x 5 per channel dimmer rating
- 32 Amp Phoenix chassis mount output connector
- Two-pin remote On/Off connector
- 5-15 Edison input receptacle
- Power coated 16ga steel chassis
- Size: 14” x 12” x 3”
- Weight: 12 lbs.
