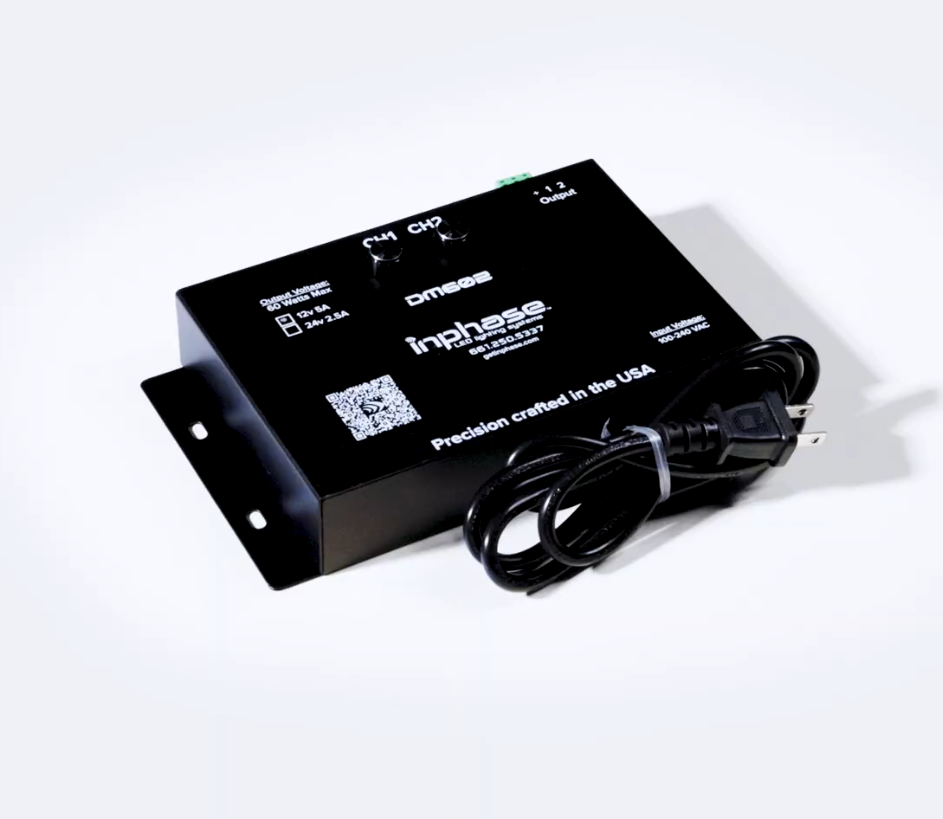

The DM-602 is a compact dual-channel dimmer designed for use with CCT (Hybrid) LED tape or any other two-channel LED application. Housed in a powder-coated chassis, the unit features a Class 2, 60-watt power supply available in a 24V (2.5A) configuration. The DM-602 connects to power using a molded two-pin AC input with an attached four-foot cord and utilizes a three-pin Phoenix connector for output. This user-friendly dimmer is ideal for small installations requiring precise control over color temperature or dual-output setups.
Specifications:
- Class 2 24V (5A) 60-watt power supply
- Universal input: 100-240 V AC (1.2A)
- Three-pin Phoenix output connector
- Two-pin AC input with four-foot power cable
- Phoenix 15A output connector
- Power coated 16ga aluminum chassis
- Size: 8.5” x 4.75” x 1.75”
- Weight: 1.12 lbs.
