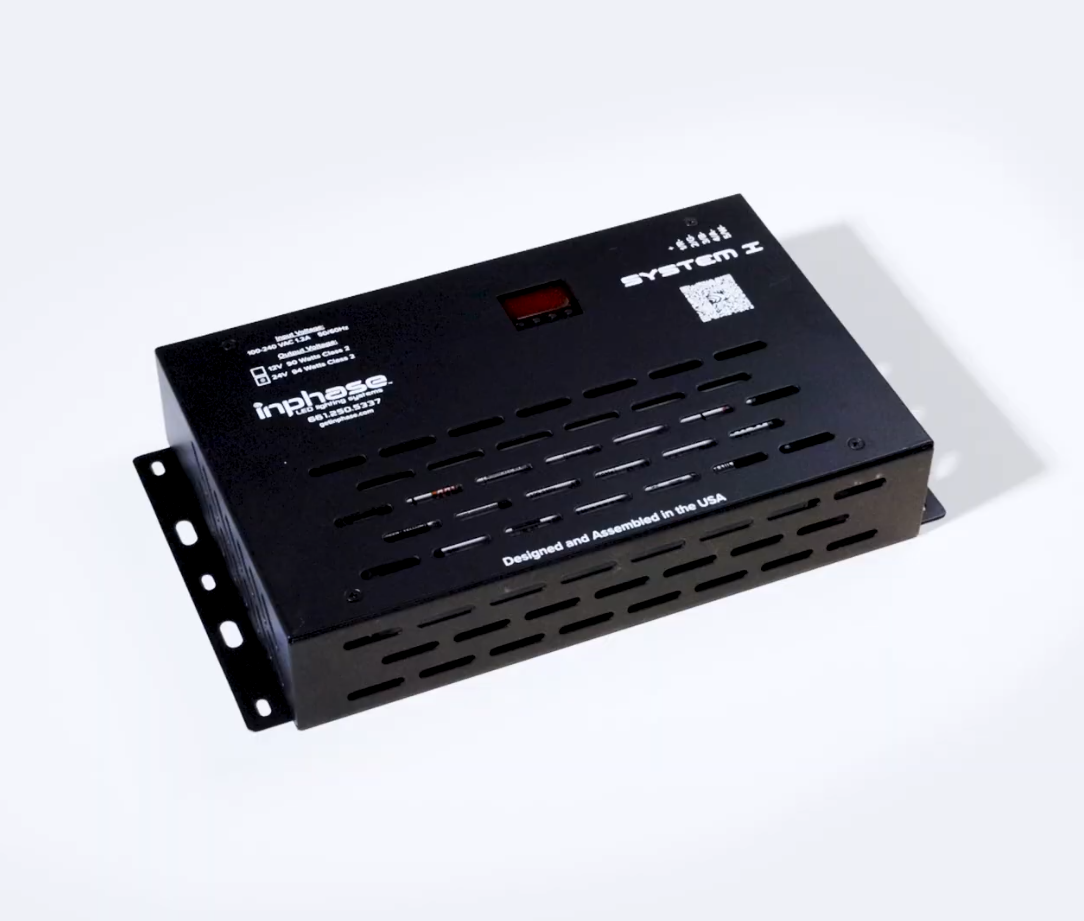

The System 1 is a fully integrated DMX control solution, combining a DMX5408 5-channel decoder with a Class 2–rated internal power supply, all housed within a rugged, 16-gauge metal chassis. Built with simplicity and safety in mind, the System 1 is ideal for public installations and venues where local fire codes require certified low-voltage power supplies.
With a compact footprint and plug-and-play functionality, this all-in-one unit streamlines installation by eliminating the need for separate power and DMX components. The System 1 delivers 96W of regulated power and supports RDM communication through multiple daisy-chained DMX input options, including RJ-45, 5-pin XLR (male/female), and Phoenix connectors
Specifications:
- Class 2 96W power supply, available in 24V DC
- Integrated DM-5408 decoder/controller that enables RDM via the following daisy chained inputs:
- (2) RJ-45 (CAT 5)
- (1) male 5-pin XLR DMX
- (1) female 5-pin XLR DMX
- (1) 5-15 Edison AC input receptacle
- (1) Phoenix 6-pin 15A/pin output connector
- 16-gauge metal chassis
- Size: 13” x 8 x 2.5”
- Weight: 7 lbs.
