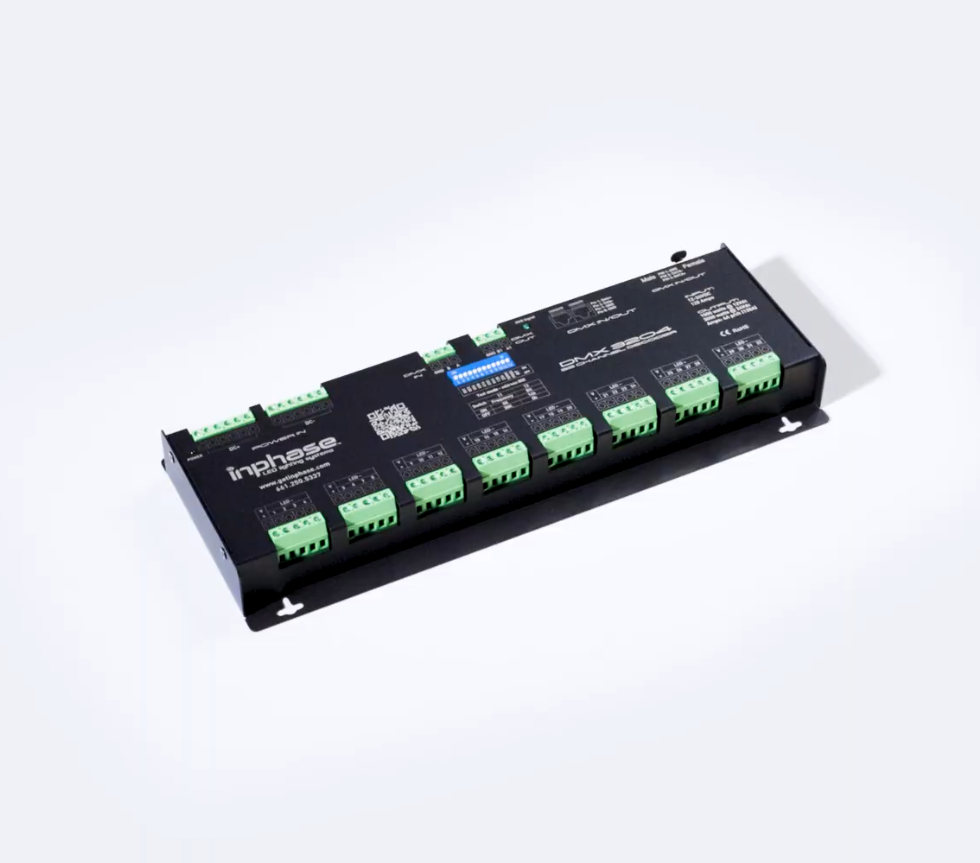

The DMX3204 is a powerful 32-channel DMX decoder designed to handle high-capacity lighting systems with ease. With support for up to 128 amps (over 3000W at 24V DC), this decoder is engineered for large-scale RGB, tunable white, or multi-circuit installations that demand robust power delivery and flexible control. Multiple DC inputs allow users to parallel power supplies, enabling output of 1500W at 12V or 3000W+ at 24V, with each channel capable of delivering up to 4 amps.
This decoder offers versatile DMX input options—including RJ45, 5-pin XLR (male and female), and Phoenix-style connectors—to ensure easy integration into new or existing DMX infrastructures. Onboard DIP switches allow quick adjustments for PWM frequency (5,000 or 30,000 Hz), 8-bit or 16-bit resolution, and termination, making this unit equally suited for field or rack-mount environments. With clearly labeled outputs (Channels 1–32) and industrial-grade build quality, the DM-3204 delivers clean, reliable performance in even the most demanding professional lighting applications.
Specifications:
- Number of Channels: 32
- DMX Input Types:
- (2) RJ-45 (CAT 5)
- (1) male 5-pin XLR DMX
- (1) female 5-pin XLR DMX
- (8) Phoenix type 5-pin connector
- (1) Phoenix type 3-pin connector
- Output Current : 40A total / 8A per channel
- Input Voltage: 12V or 24V DC
- Output Voltage: 12V or 24V DC
- Size: 12.25” x 4.75” x 1.25”
- Weight: 1 lb. 11 oz.
