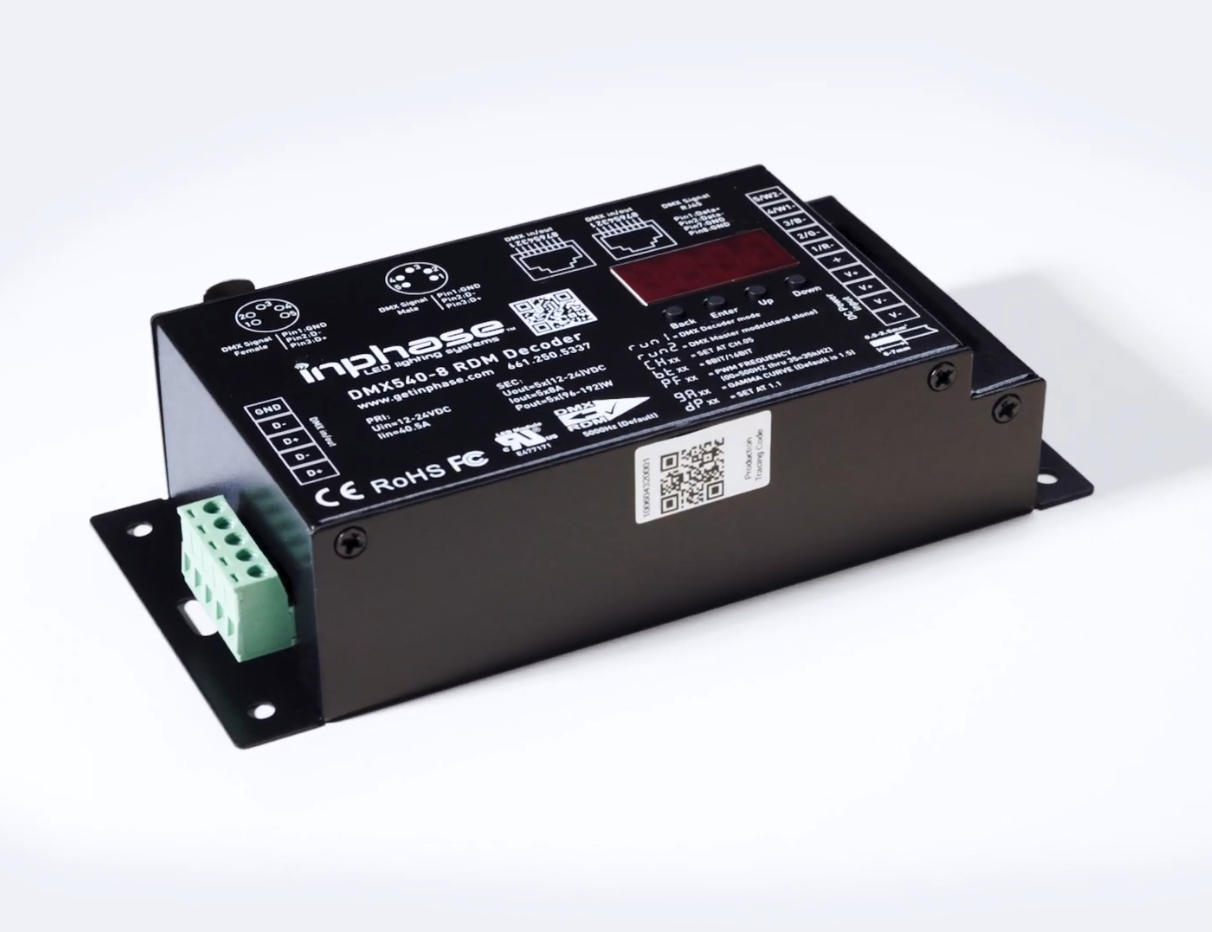

The DMX5408 is a versatile 5-channel DMX decoder designed for high-performance control of multi-color LED lighting, including full RGBAW configurations. Engineered for professional environments, this unit delivers up to 8 amps per channel (40A total) and supports both 12V and 24V DC systems—ideal for driving up to five rolls of 5-color LED tape simultaneously.
Featuring a built-in digital display, the DMX5408 offers easy configuration of DMX address, PWM frequency (selectable between 5,000 and 30,000 Hz), dimming curves, and 8- or 16-bit resolution. The higher PWM setting makes it especially well-suited for studio applications where low-level audio interference must be avoided. Multiple input options including 5-pin XLR, RJ45, and Phoenix connectors—ensure flexible integration into any DMX control system.
Specifications:
- Number of Channels: 5
- Digital display for address and operational configuration
- DMX Input Types:
- (2) RJ-45 (CAT 5)
- (1) male 5-pin XLR DMX
- (1) female 5-pin XLR DMX
- (1) Phoenix type 5-pin connector
- Output Current : 40A total / 8A per channel
- Input Voltage: 12V or 24V DC
- Output Voltage: 12V or 24V DC
- Size: 6.5” x 2.88” x 1.5”
- Weight: 13.8 oz.
